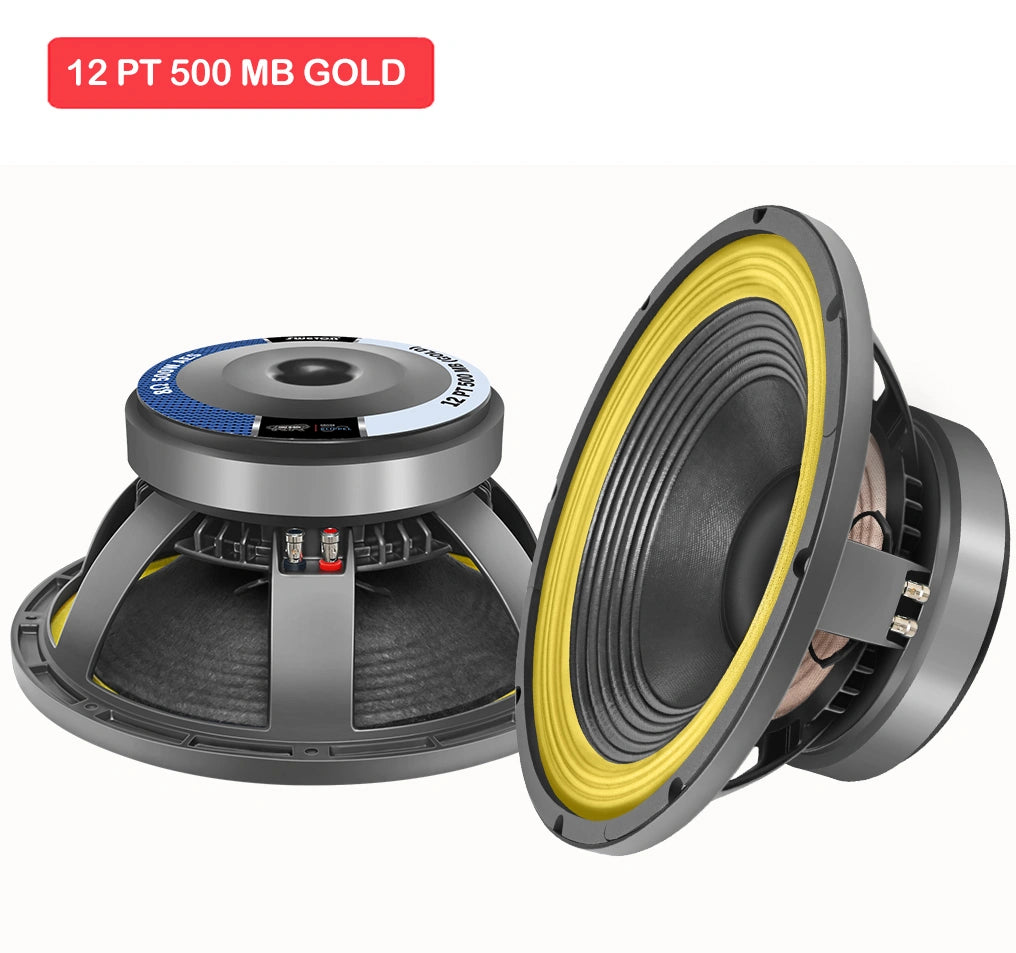

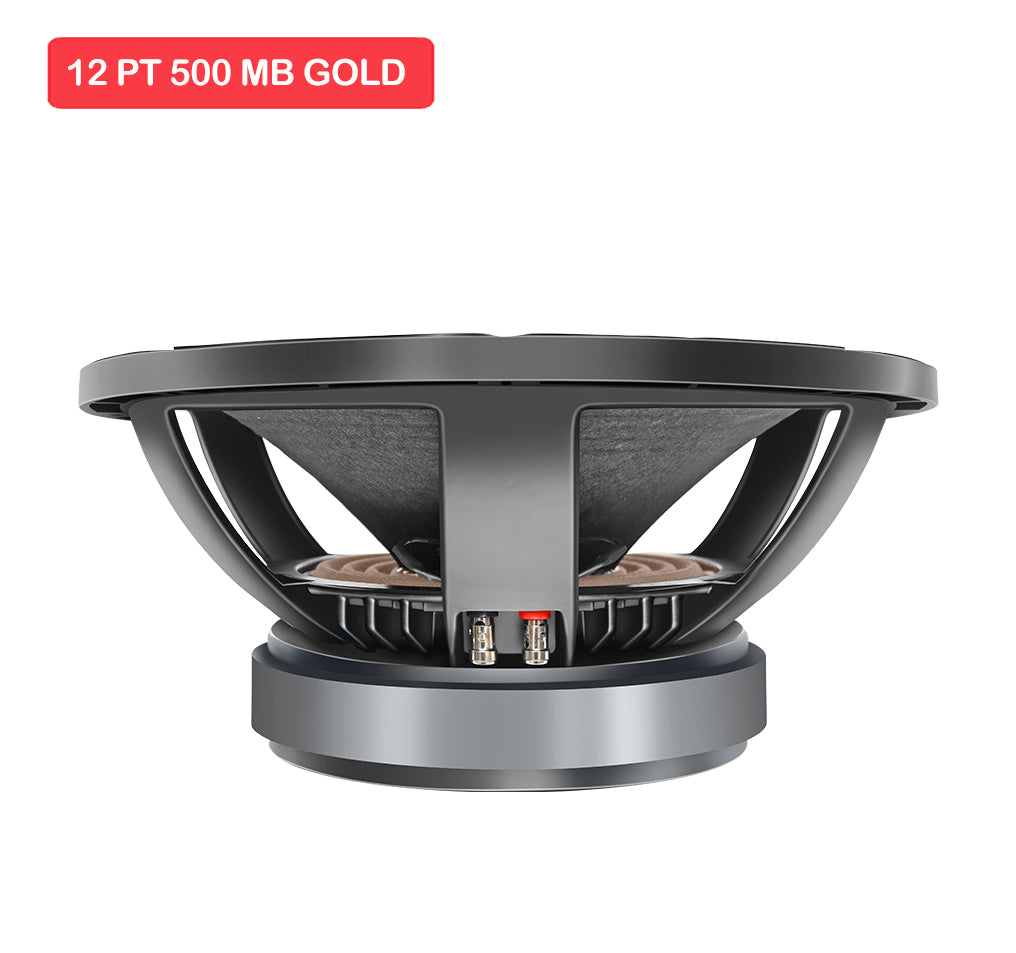

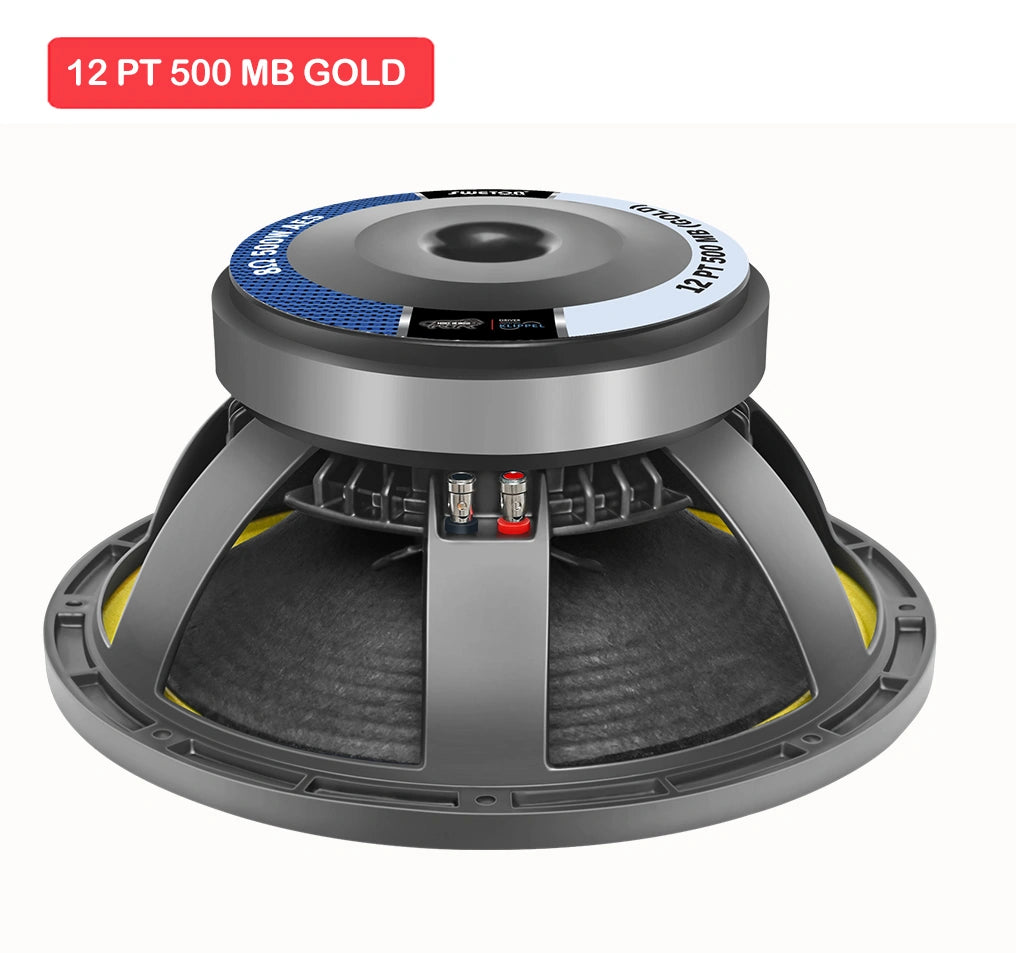

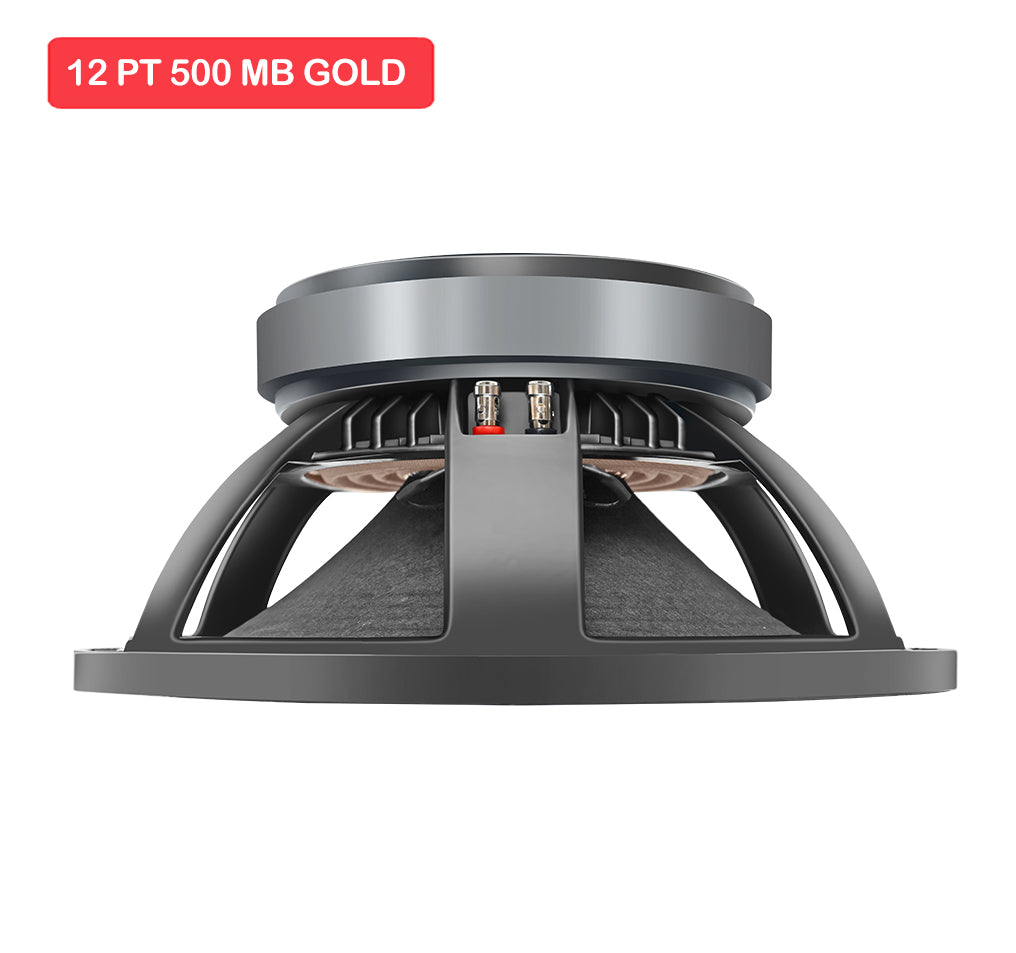

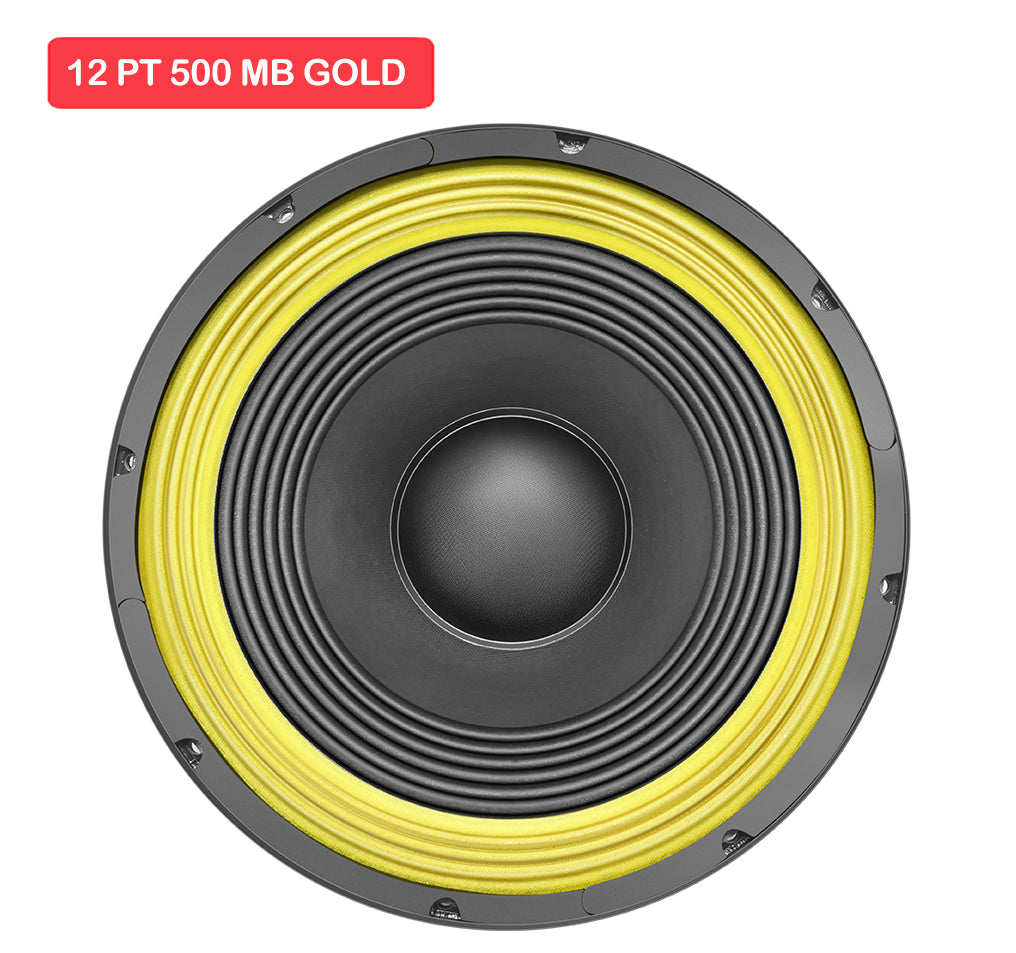

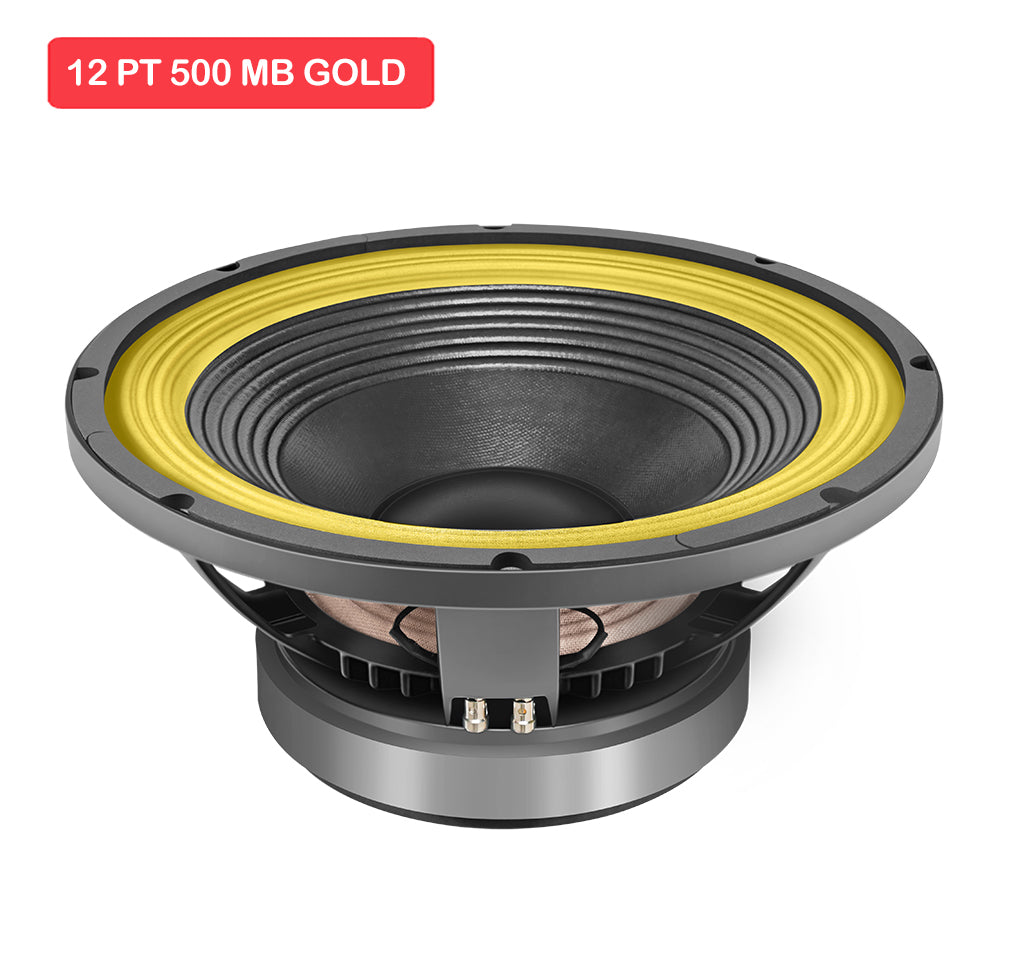

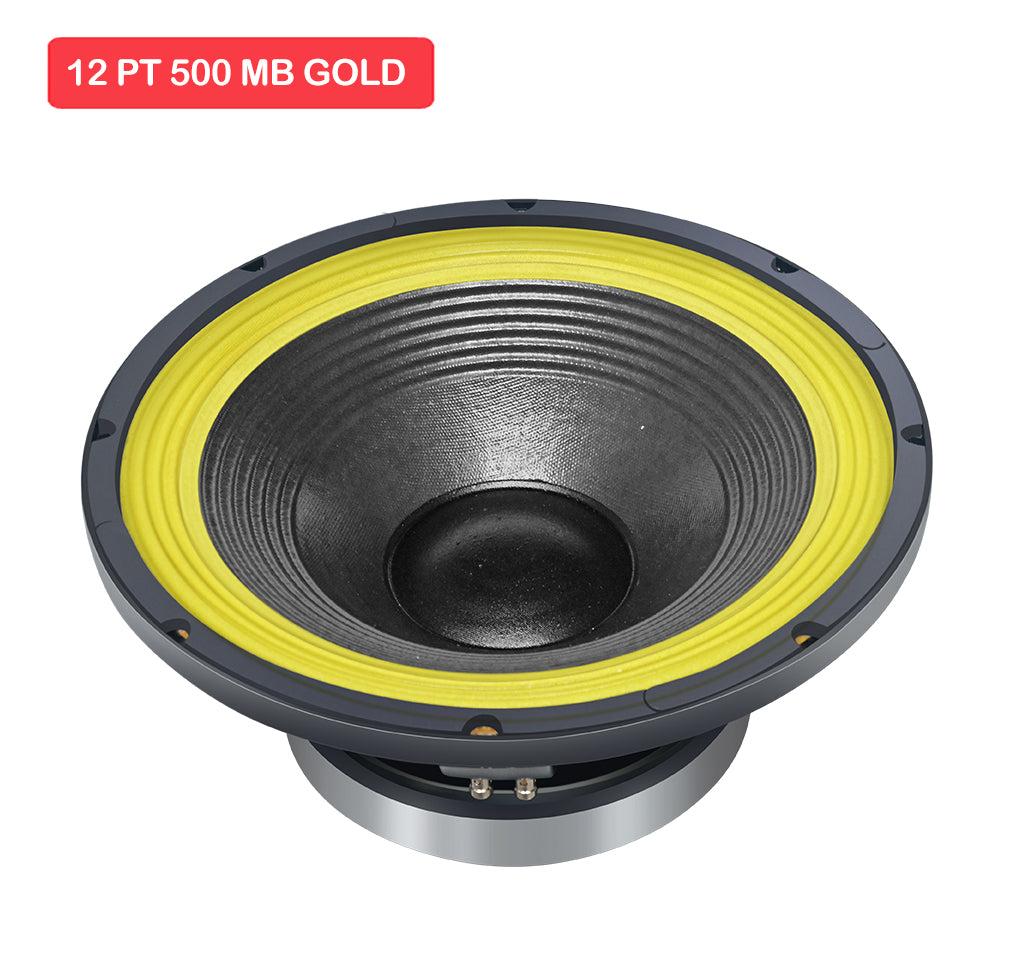

12 PT 500 MB GOLD
12 PT 500 MB GOLD is a pure gold standard transducer in Mid Bass category which is also perfect for use in Large Format Line Arrays.
A very efficient transducer which produces crispy mid as well as boomy bass linearly. Suitable for Bass Reflex / Ported Enclosure.
Key Features
- Program Power : 1000 W
- Voice Coil Diameter : 76.2 mm (3 in)

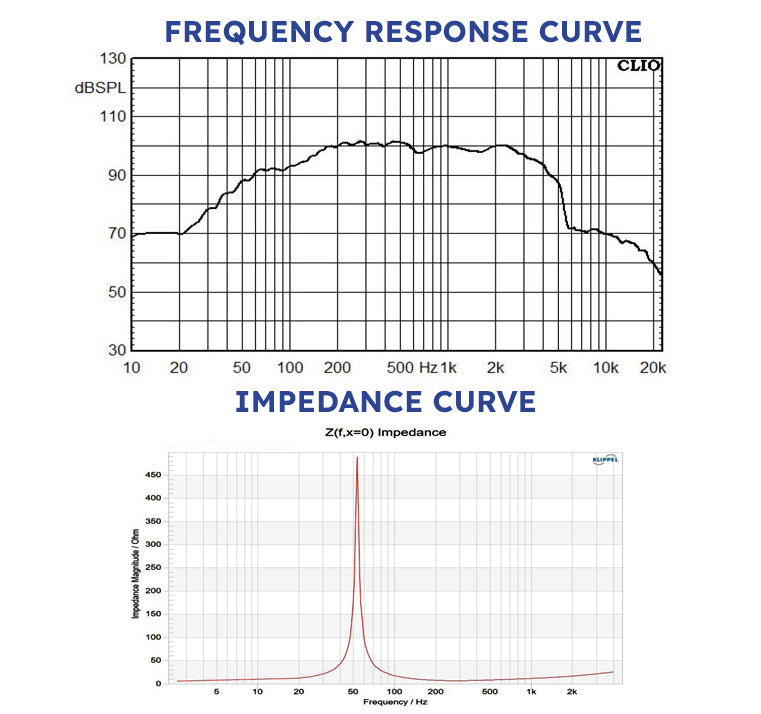

- Response : 55-4500 Hz
- Sensitivity 1W/1M : 98 dB
-
- Nominal Diameter314 mm
- Nominal Impedence8 Ω
- Nominal Power Handling(AES)500 W
- Program Power1000 W
- Sensitivity (1W/1m)98 dB
- Frequency Range55-4500 Hz
- Magnet MaterialFerrite
- Voice Coil Diameter76.2 mm ( 3 in)
- Winding MaterialCOPPER
- Former MaterialGLASS FIBRE
- Winding Typein/out
- Overall Diameter314 mm
- Bolt Circle Diameter296 mm
- Baffle Cutout Diameter282 mm
- Depth147 mm
- Flange and Gasket Thickness15 mm
- Gross Weight9.2 Kg.
- Resonant Frequency (FS)53 Hz
- DC Resistance (Re)5.7 Ω
- Electrical Q (Qes)0.24
- Mechanical Q (Qms)20.03
- Total Q (Qts)0.23
- Compliance Equivalent Volume (vas)57 Ltrs
- Peak Diaphragm Displacement Volume (Vd)0.16 Ltrs
- Effective Surface Area of Cone (Sd)530.93 cm^2
- Reference Efficiency (ƞo)3.48%
- Moving Mass including air load (Mms)62.30 gms
- Motor Strength (Bl)22.42 T-m
- Voice Coil Inductance @ 1 KHz (Le)0.40 mH
- Efficiency Bandwith Product (EBP)221 Hz
- Voice Coil Overhang (Xmax)±4.72 mm
