Sweton 10 it 500 MB Mid Speaker

Sweton 10 it 500 MB Mid Speaker

Rs. 5,300.00
Rs. 5,300.00 Rs. 6,499.00

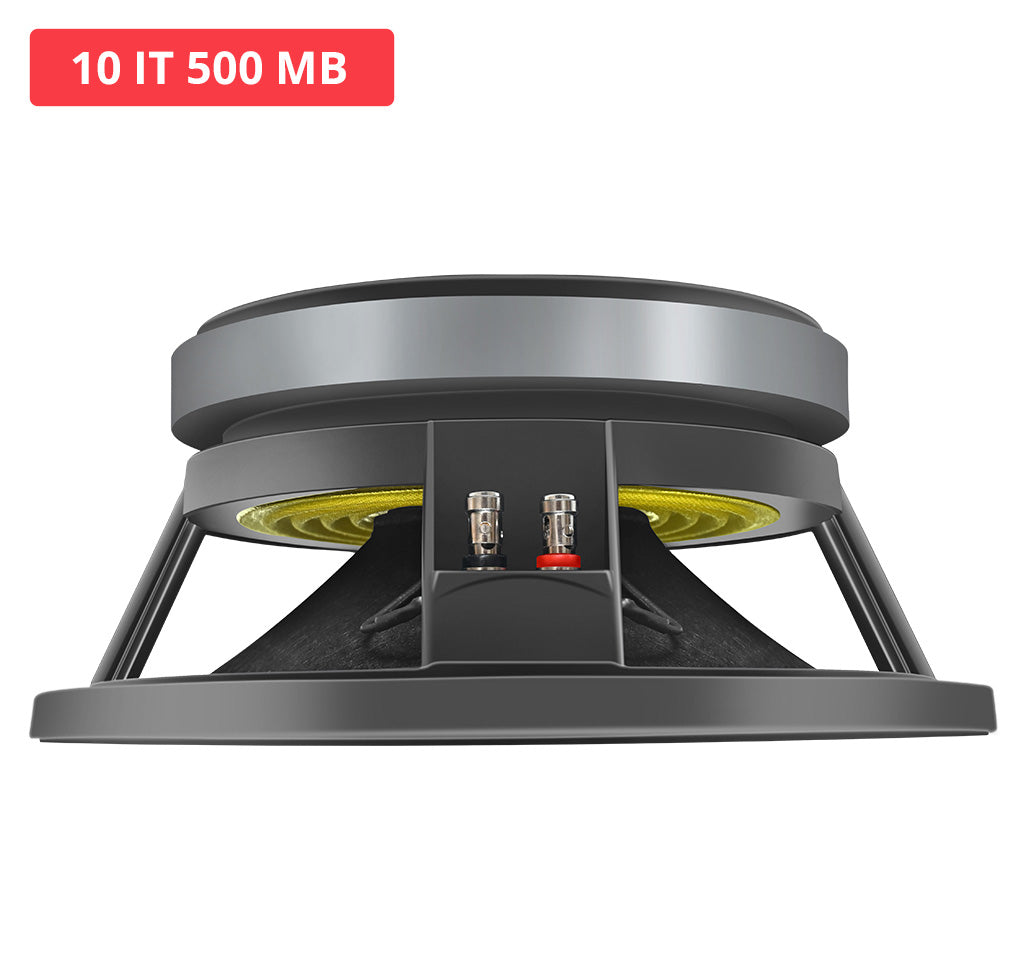

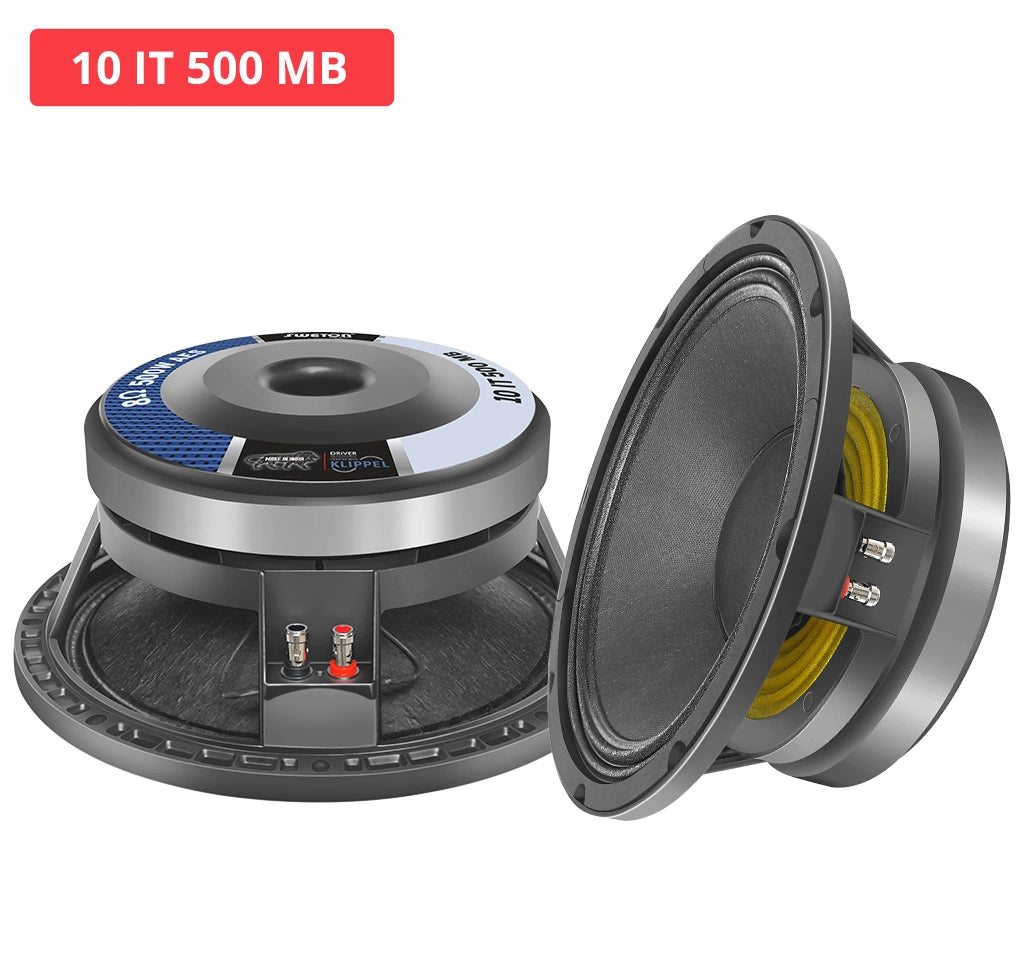

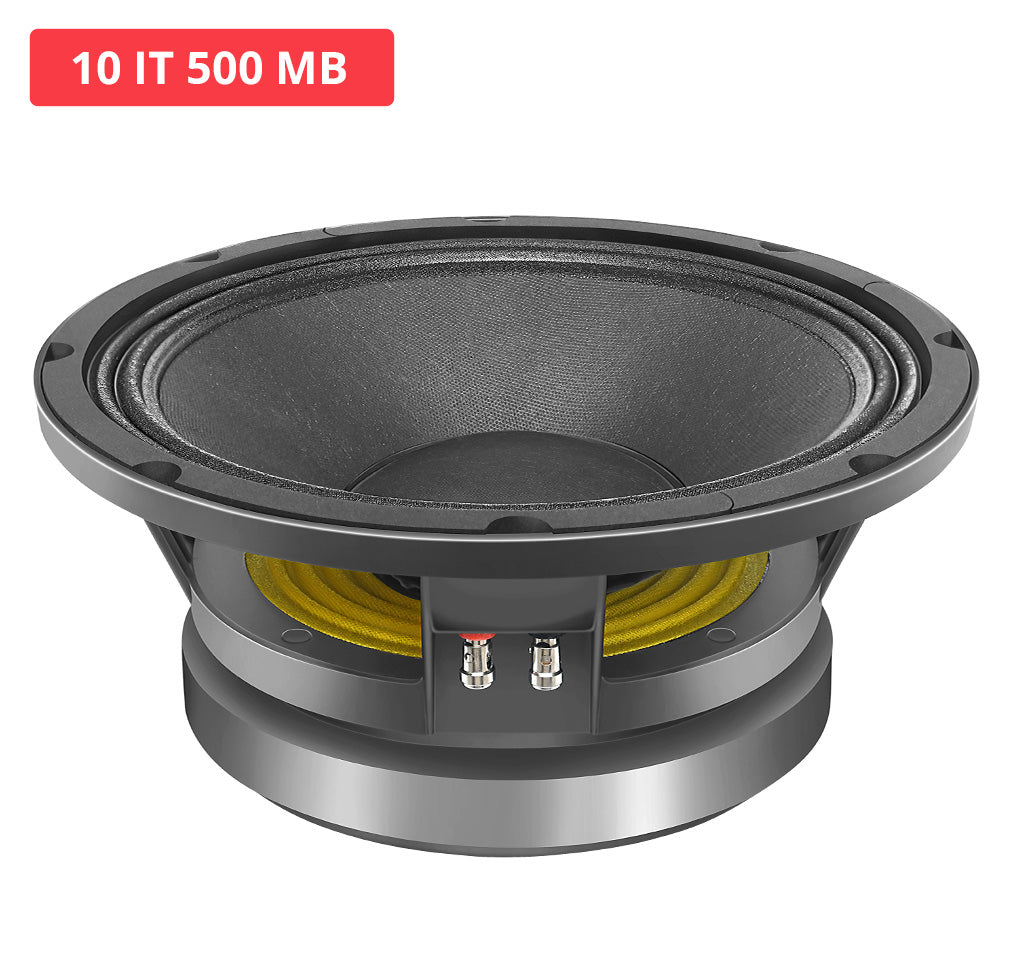

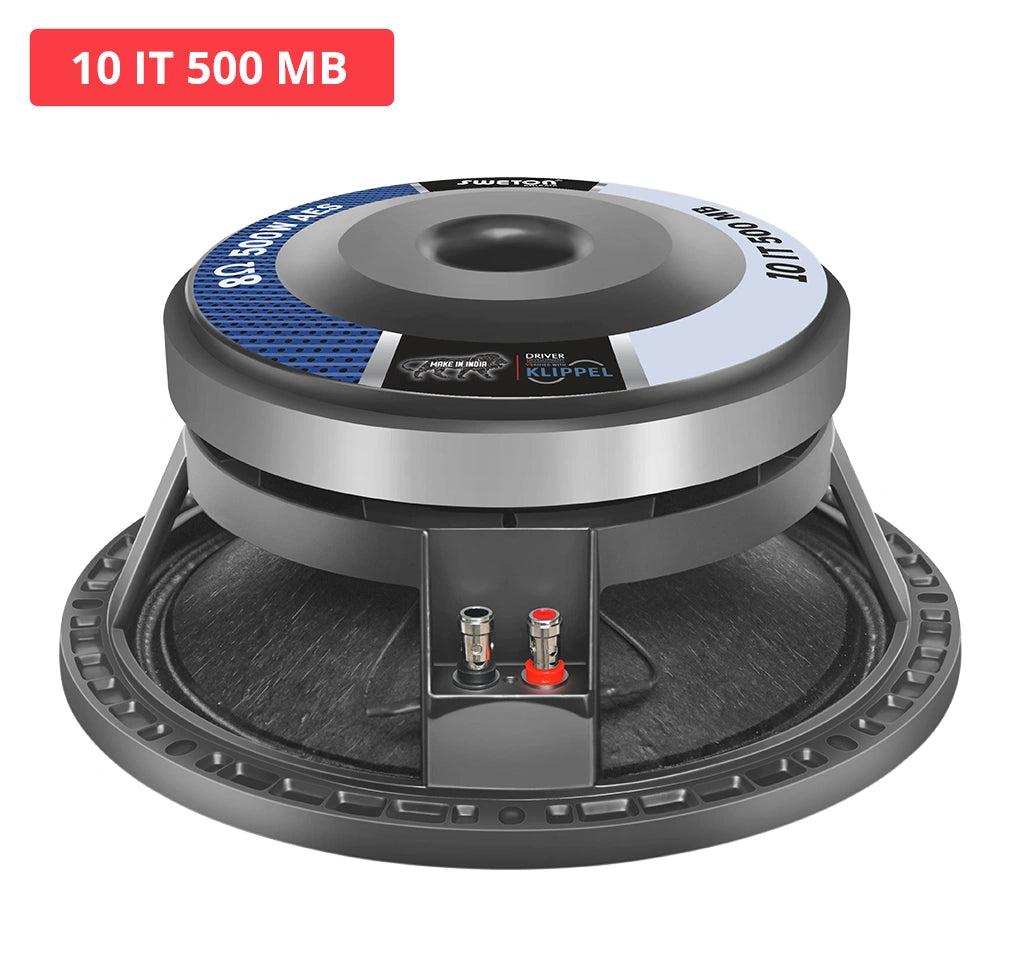

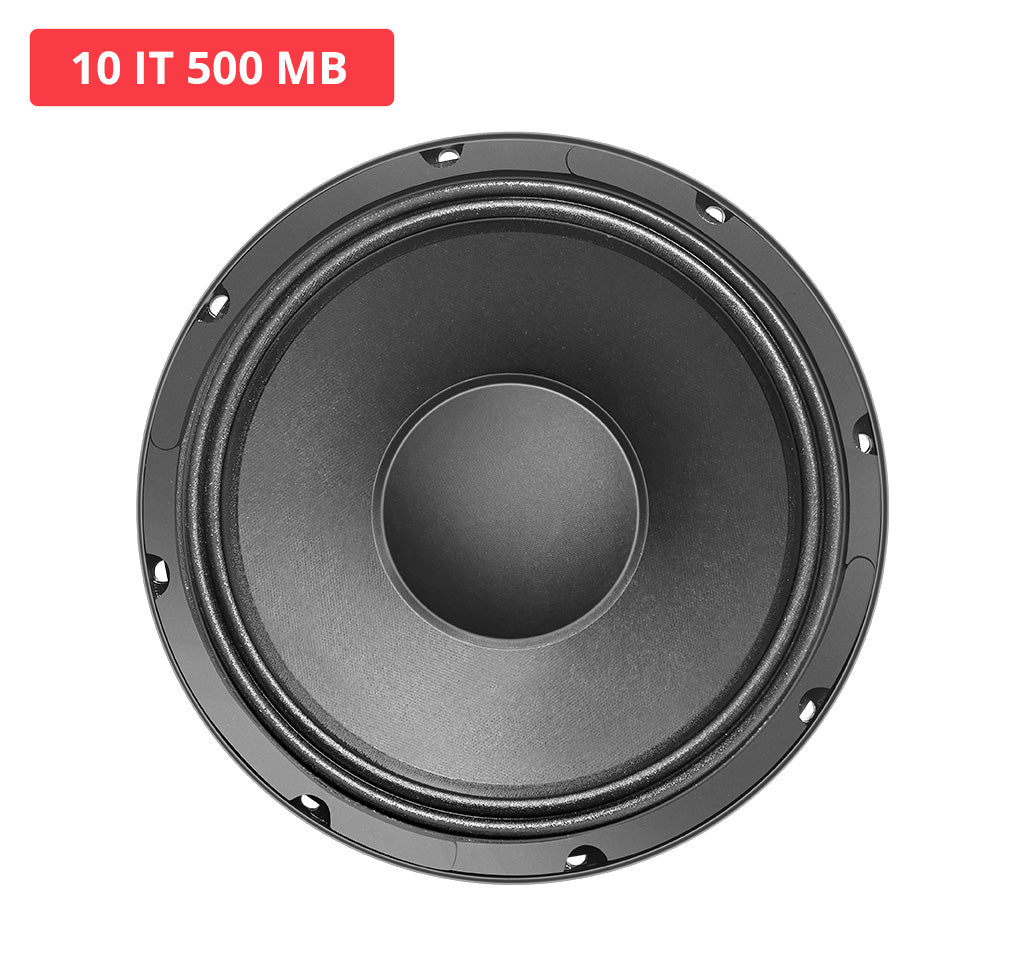

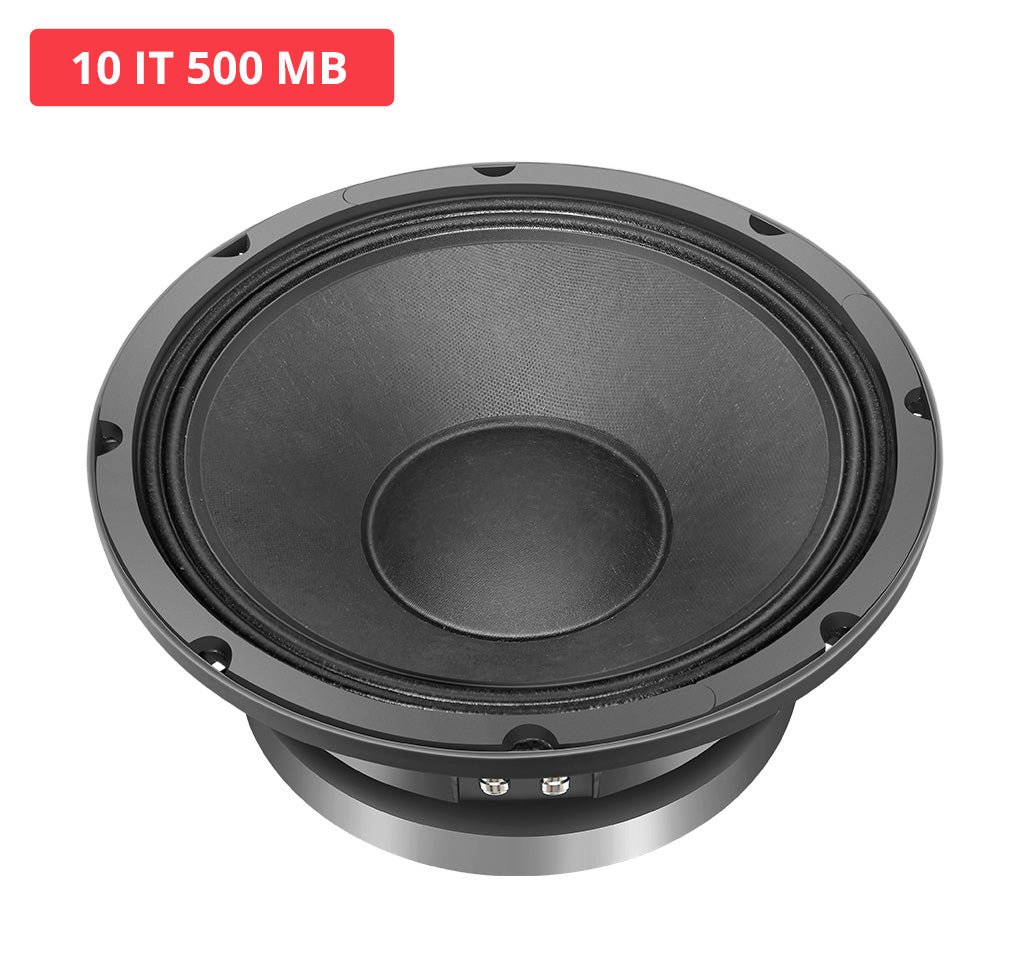

10 IT 500 MB

This transducer in 3 Inch voice coil makes it one of the sharpest Mid Bass transducers with lower bass element which makes the sound balanced in its category. Tonal quality is very sharp and is advisable to use this in large format Line Array or Point source. Suitable for Bass Reflex/Ported Enclosures.

Key Features

  • Program Power : 1000 W
  • Voice Coil Diameter : 76.2 mm (3 in)

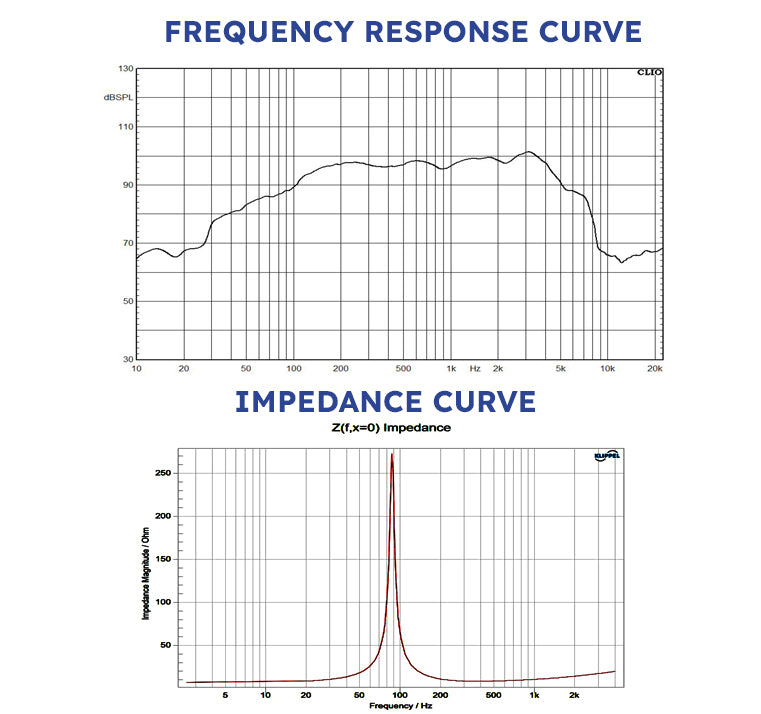

  • Response : 87-5000 Hz
  • Sensitivity 1W/1M : 97 dB
    • Nominal Diameter261 mm

    • Nominal Impedence8 Ω

    • Nominal Power Handling(AES)500 W

    • Program Power1000 W

    • Sensitivity (1W/1m)97 dB

    • Frequency Range87-5000 Hz

    • Magnet MaterialFerrite

    • Voice Coil Diameter76.2 mm ( 3 in)

    • Winding MaterialCCAW

    • Former MaterialGlass Fibre

    • Winding TypeIn/Out
      • Resonant Frequency (FS)87 Hz

      • DC Resistance (Re)6.8 Ω

      • Electrical Q (Qes)0.38

      • Mechanical Q (Qms)14.96

      • Total Q (Qts)0.37

      • Compliance Equivalent Volume (vas)18.74 Ltrs

      • Peak Diaphragm Displacement Volume (Vd)0.05 Ltrs

      • Effective Surface Area of Cone (Sd)363.1 cm^2

      • Reference Efficiency (ƞo)3.17%

      • Moving Mass including air load (Mms)34.2 gms

      • Motor Strength (Bl)18.52 T-m

      • Voice Coil Inductance @ 1 KHz (Le)0.35 mH

      • Voice Coil Overhang (Xmax)±1.50 mm

      • Efficiency Bandwith Product (EBP)228 Hz
        • Overall Diameter261 mm

        • Bolt Circle Diameter248 mm

        • Baffle Cutout Diameter234 mm

        • Depth110 mm

        • Flange and Gasket Thickness14 mm

        • Gross Weight8.80 KG
